Top700 HIGHER STRENGTH REINFORCING STEEL
Stronger steel for slim structures and cost-effective construction
- earthquake-proof applications
- heavily reinforced components
- precast concrete components
- columns
- warehouses
Increasing strength and reducing steel quantities
Top700 solves several challenges other concrete reinforcement steels cannot. Thanks to the higher yield strength of >700N/mm2, Top700 overcomes technical boundary conditions, such as space problems with the reinforcement or aesthetical challenges, such as reduction of the concrete cross-section. And it comes head-on with economic advantages, because due to its higher strength, up to 40% less steel is required, saving money on several ends: reduced quantity, reduced machining efforts, less transport. The latter also a welcome factor from an environmental standpoint.
- Yield strength of >700N/mm2
- higher strength rebar - 40% stronger than conventional B500B
- Allows reduction of steel needed due to higher strength
- Allows slimmer and more streamlined structures
- Steel bar
- Top700
Top700: Technical data
Min. yield strengths (Rp0.2) expressed in N/mm²
| Product | Yield strength Rp0,2 | Yield to tensile strength ratio Rm/Rp0,2 | Elongation at max. load Agt | |||||
| [Mpa] | [ - ] | [ % ] | ||||||
| Top700 | ≥ 700 | ≥ 1,08 | ≥ 5,0 | |||||
| Density in kg/dm2 | Electrical resistance at 20°C in (Ω mm2)/m | Magnetisa-bility | Thermal conductivity at 20°C in W/(m K) | Specific heat capacitiy at 20°C in J/(kg K) |
Young's modules in GPa at »20°C | Mean thermal expansion coefficient in 10-6K-1 »20°C - 100°C |
| 7.85 | - | yes | 50 | - | 205 | 10 |
| C | ||||||||
| Si | Mn | V | Al | Cr | Ni | N | ||
| 0.21 | 0.50 | 1.43 | 0.1 | 0.02 | ||||
| Type | Top700 | |
| Steel bar | Ø 26 / 30 / 34 / 40 mm | |
Approvals and related applications for Top700
- SIA 262: 2013 (Swiss standard): Top700, listed in "Register of standard-compliant concrete steels"
Civil engineering and underground projects
- Columns (e.g. centrifugally cast concrete)
- Heavily reinforced components
Building construction projects
- Precast concrete components
- Warehouses
- Earthquake proof applications

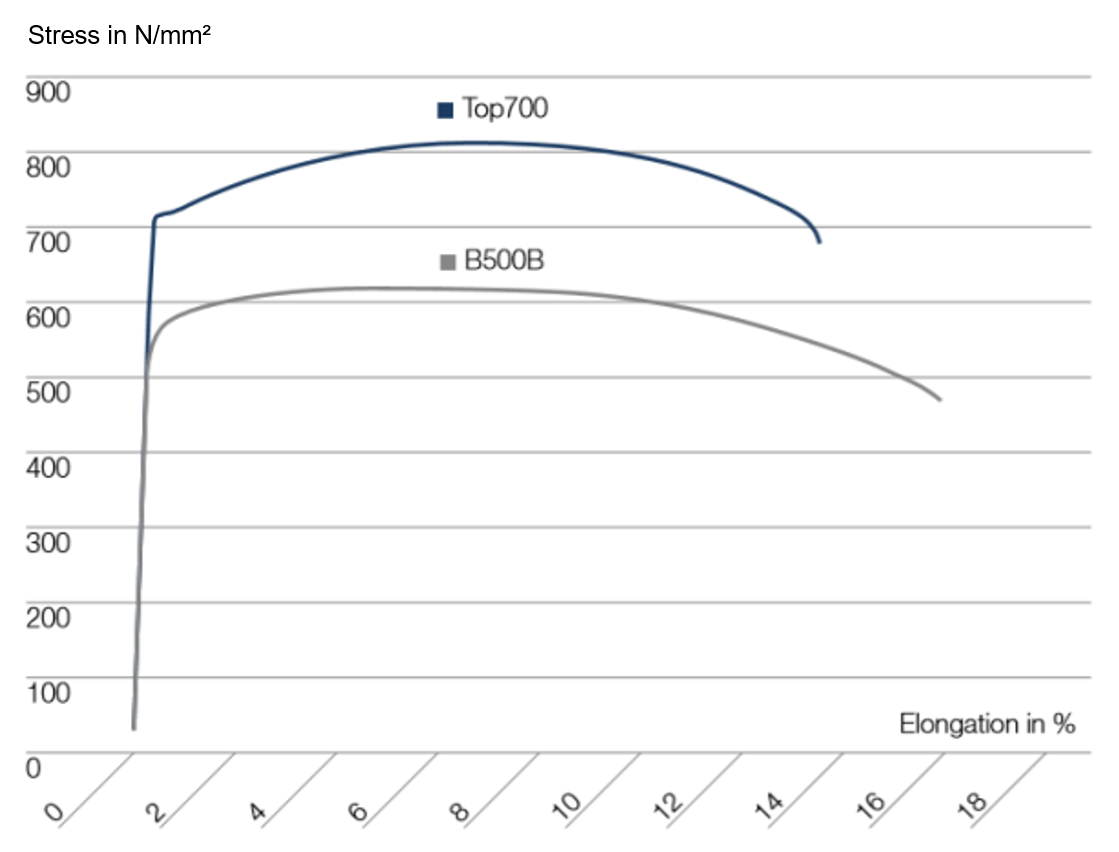

Take a look at how Top700 compares to regular B500B
High-strength Top700 means less steel for the reinforcement
New possibilities of architectural design are opening up: slimmer construction with better use of space and less weight. The workload in prefabrication and on site is reduced because less steel is needed. It is easier to comply with the standard values for maximum rebar content in highly reinforced components. Reinforced concrete construction with Top700 does not require any special properties of the concrete.
